FREE FALL METAL SEPARATOR

G SERIES METAL DETECTOR

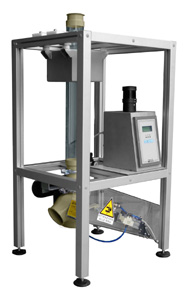

Free fall metal separator G series metal detector

The G SERIES METAL DETECTOR was developed specifically to check flour and granulated products inside pipes, without interruptions in the production lines.
The metal detector finds it's applications in numerous industries, including:

metal detector for salt and sugar Salt and Sugar   metal detector for spices Spices
metal detector for flours, mais, rice, cereals Flours, Mais Rice, Cereals Pasta
Pharmaceutical industries Pharmaceutical industries Riclclaggio plastica, legno

The system is constituted by one Tor-Al detection head, one Comp-Al control board and one rapid acting rejection valve. It's a compact and effective solution to all problems of metal contamination.

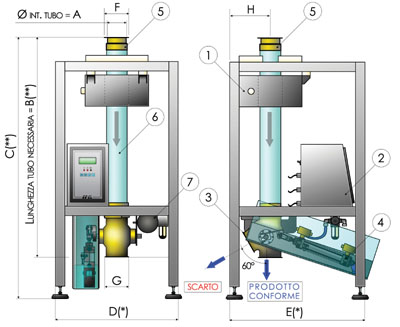

NOTES

1: Tor-AL detection head
2: COMP-AL control board (possible remote control)
3: Rejection valve
4: Valve actuator, with protections
5: Clamp ring
6: Acrilic plasctic pipe
7: Pneumatic actuator
Opzional: Charge hopper
FEATURES
The G SERIES metal detectors can be realized with different pipes diameter, to adapt to the various typologies and installation conditions.
Every metal detector is equipped with a fast acting rejection valve that can intercept the contaminated product even when travelling at great speeds.
The G SERIES metal detectors can be installed with a vertical passage pipe or on tilted piping.
The rejection valve is made of painted ferrous sheets or stainless AISI304 steel upon request, and is equipped with an automatic position control to prevent jams.
Software-controlled rejection times guarantees minimal loss of product and the removal of the contaminating parts.

Installation schematic

TECNICAL FEATURES

MODELLO/MODEL

A

B

C

D

E

F

G

H

G80 80 1100 1300 590 650 DN80 DN100 170
G100 100 1100 1300 590 650 DN100 DN100 195
G150 140 1300 1500 660 750 DN150 DN150 265
G200 200 1600 1800 660 750 DN200 DN200 290
(*) The supporting structure can be build in custom sizes for particular installations.
(**) Maximum size for high product speed (free fall). Can be reduced in case of slower products (sloped passage)
